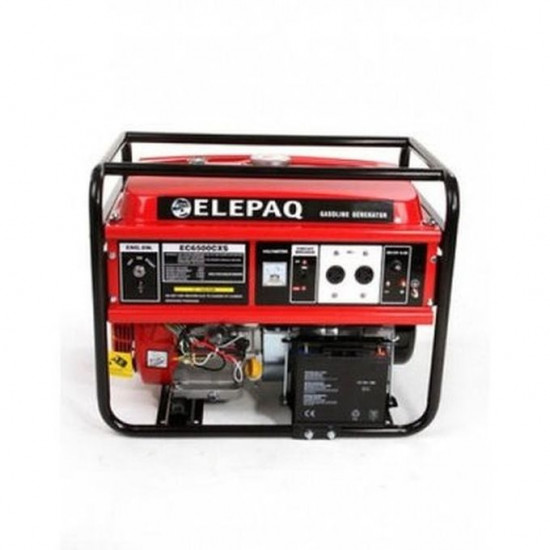

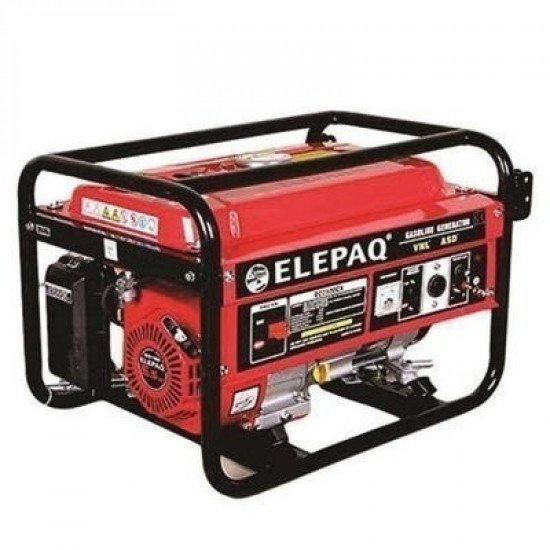

Elepaq Constant EC3800 Manual Start Generator 100% Copper 2.8kva

Key Features

 Model: EC3800CX

 Rated frequency(Hz): 50

 Rated voltage(V): 230

 Rated output power(KVA): 2.8

 Max. output power(KVA): 3.0

 Rated rotation speed(rpm): 3000

 Total Harmonic Distortion(THD)-3.5%(typical) , 5%(maximum)

 DC output:12V 8A

 Power factor cos: 1

 Phase number: Single phase

 Noise level dB@7m(zero load-full load): 70-72

 Fuel tank(L): 12L

 Over dimension(L*W*H)(mm): 575*455*455

 N.W/G.W(kg): 35/36

 Engine model: WG200

 Engine type: Single cylinder, 4-stroke, air-cooled, OHV, gasoline engine

 Displacement(cc): 200

 Compression ratio: 8.5:1

 Rated power(Hp/rpm): 2.5/3600

 Rated rotation speed(rpm): 3600

 Starting system: Recoil starter

 Rotation direction(view from flywheel): Clockwise

 Fuel type: Automotive unleaded gasoline

 Lube oil brand: SAE10W30(above CC grade)

 Low oil alarm system
